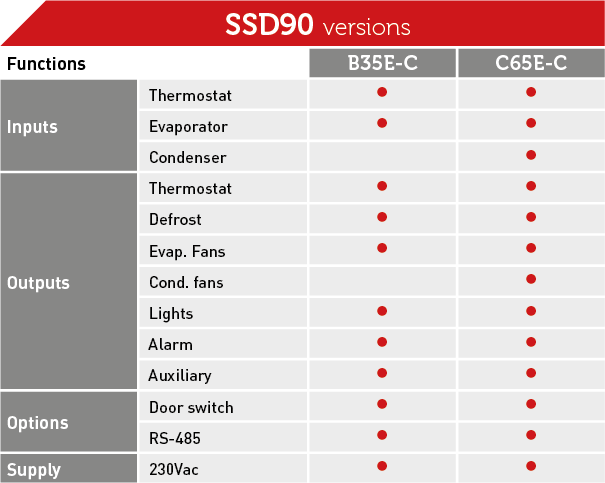

SSD90

Multi-purpose refrigeration controller for HT & LT, with condenser control

Data sheet

Main features

  • No contactors or external wiring
  • Up to three probes for: thermostat, evaporator, condenser
  • Up to seven power relays: compressor, evaporator fans, condenser fans, defrosting, alarm, lights, auxiliary loads
  • On/Off button
  • Lights controlled manually or through door switch
  • Selection of scale in °C/°F
  • Faston connectors for Lives and Neutrals
  • Up to eight alarm sources
  • Connection to supervision LAE systems

Applications

Cold stores, refrigerating cabinets, tables and counters, medical cabinets and display cases, both static and ventilated. It can also be used to control heated cupboards.

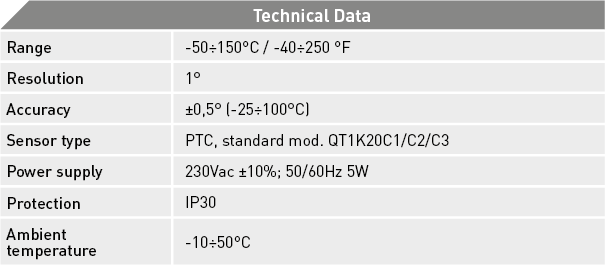

Technical data

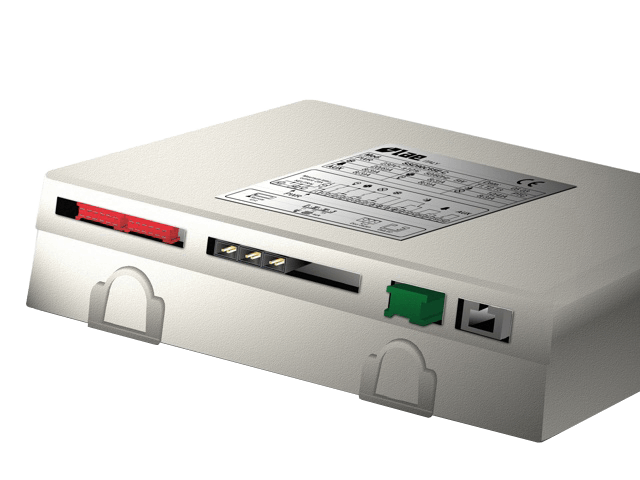

SSD90C65E-C

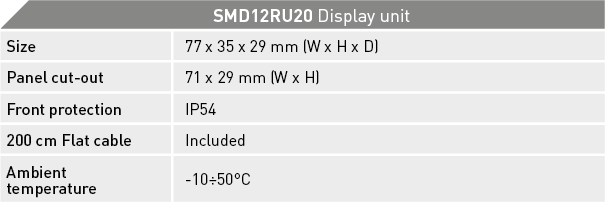

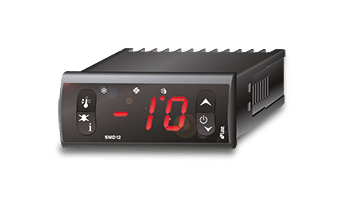

SMD12

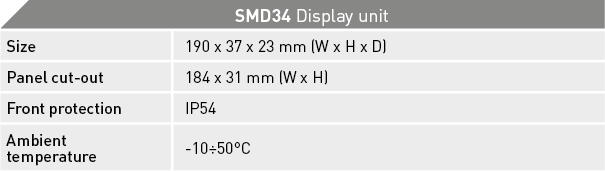

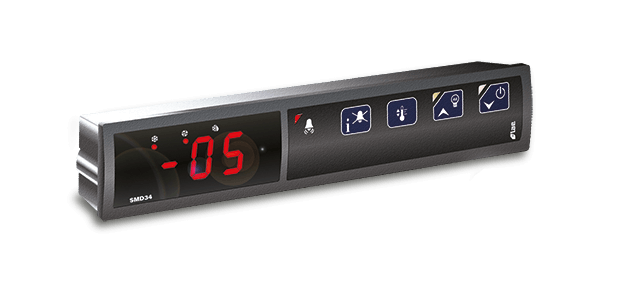

SMD34
