LCD32

Compact multi-function refrigeration controller

Data sheet

Download

Main features

  • Panel thermostat for High and Low Temperature
  • Runs on mains power supply.
  • Evaporator fan control
  • Electrical, hot gas or off cycle defrost
  • Light or auxiliary load control
  • Quick connectors for Lives and Neutrals
  • Two operating parameter sets
  • Door open, high/low temperature, HP alarms
  • Automatic condenser clean warning
  • Connection to LAE supervisory systems

Applications

Cold stores, refrigerating cabinets, tables and counters, saladettes, medical cabinets and display cases, both static and ventilated.

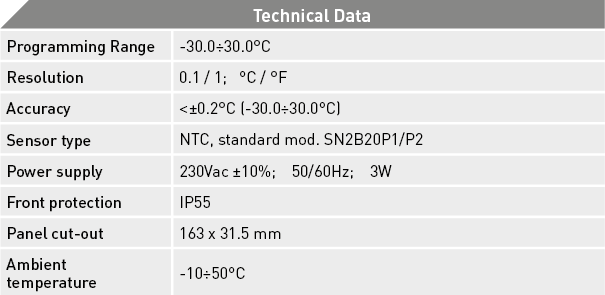

Technical data

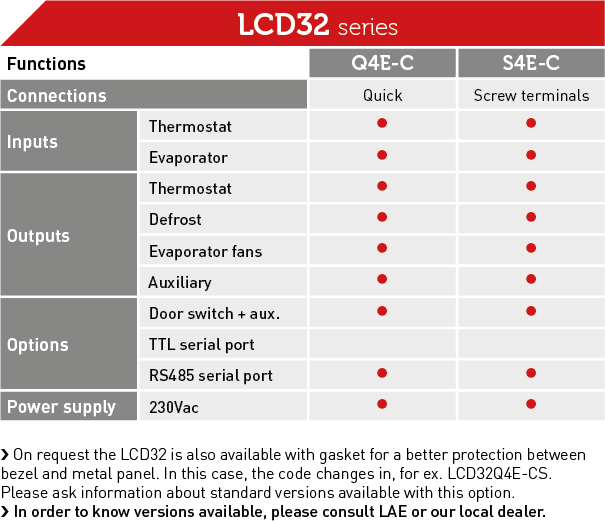

LCD32Q4E-C
