BIT25
BIT25

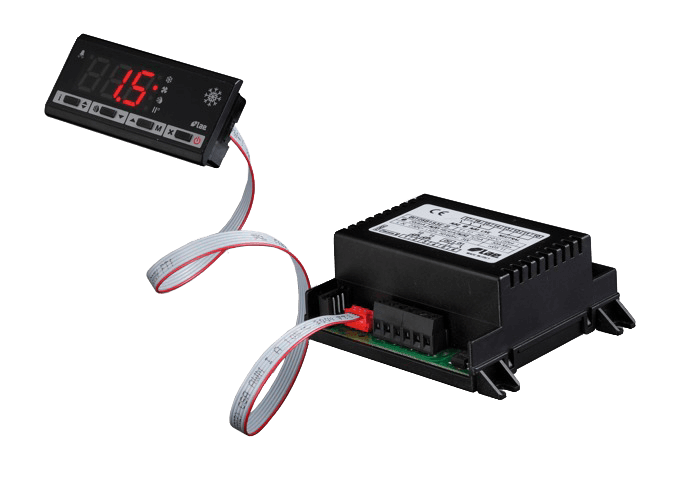

Split HT/LT Refrigeration Controller
Data sheet
Download
Main features
- Three highly rated relay outputs
- Configurable control of Aux 1 and Aux 2 outputs
- Alternate set of parameters for energy saving
- Management of multiple alarms
- Option of setpoint adjustment via a potentiometer, no display
- Standby button (On/Off)
- Universal power supply 100-240V
- Suitable for R290
- Connection to LAE supervisory systems
- UL approved
Applications
Upright refrigerators, bottle coolers, plug-in display cases for shops and supermarkets, cold stores, control panels.

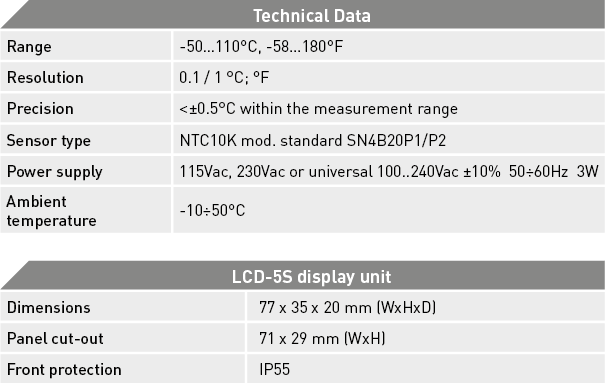

Technical data

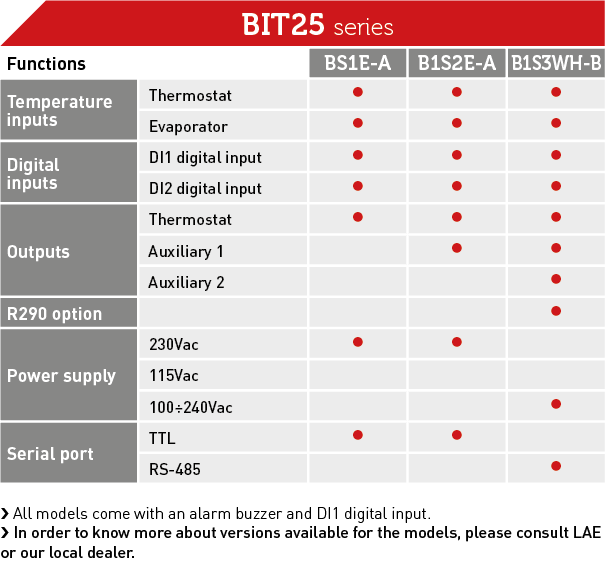

BIT25B1S3W-B
