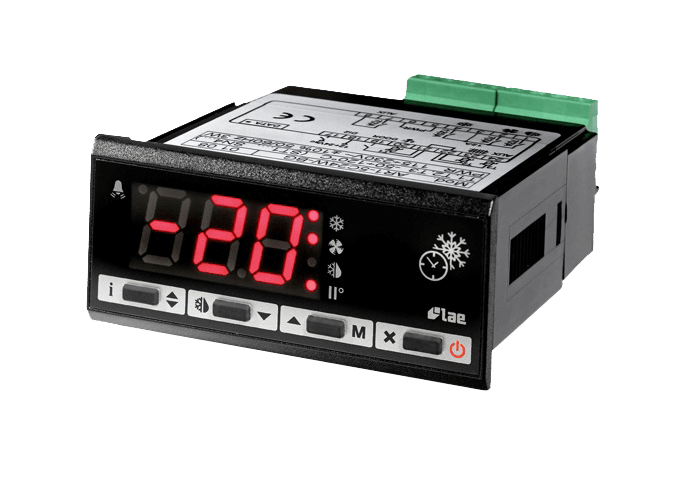

AR2-5

Universal Refrigeration Controller with RTC

Data sheet

Download

Main features

  • Up to six real time defrosts
  • Synchronized defrost start and termination with master-slave connection
  • Selectable NTC10K or PTC input
  • Universal 110-230Vac power supply
  • FLEXICOLD function for energy saving or alternative setpoint
  • Optional control of a second compressor or evaporator
  • Excellent evaporator fan control
  • Temperature, door open, condenser high temperature/pressure¬†alarms
  • Light and standby control (On/Off)
  • Connectivity to LAE supervisory systems

Applications

Plug-in cabinets, supermarket display cases, cold stores, control panels, upright fridges and freezers, refrigerated tables.

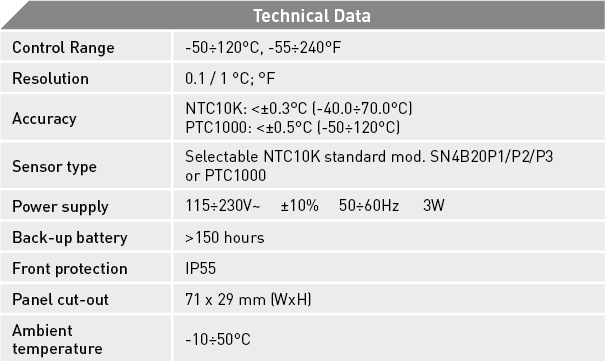

Technical data

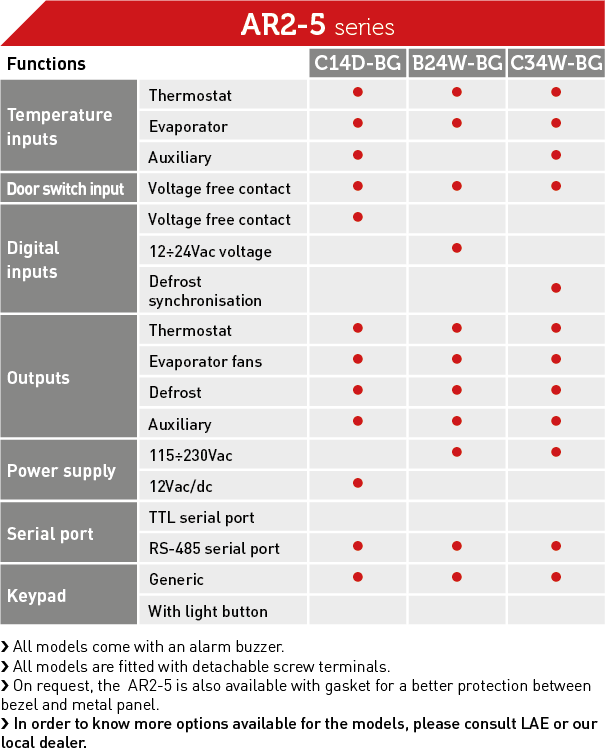

AR2-5C34W-BG
