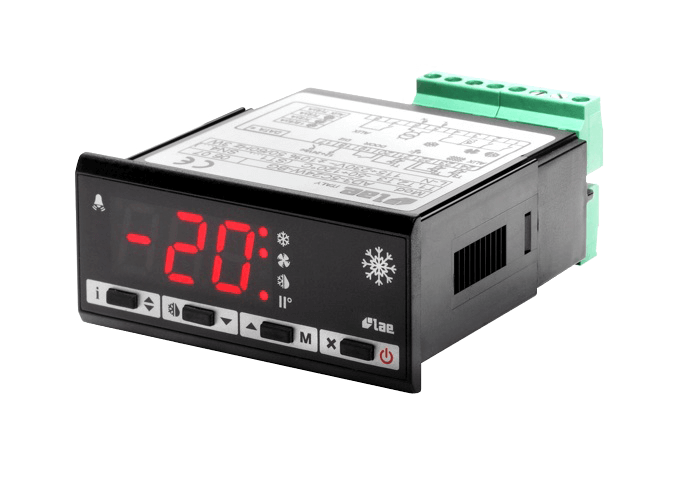

AH1-5

Controller for transport refrigeration

Data sheet

Download

Main features

  • Refrigeration and heating controller with neutral band
  • Selectable NTC10K or PTC input
  • Universal 110-230Vac power supply
  • FLEXICOLD function for energy saving or alternative setpoint
  • Optional control of a second compressor or evaporator
  • Excellent evaporator fan control
  • Temperature, door open, condenser high temperature/pressure¬†alarms
  • Light and standby control (On/Off)
  • Connectivity to LAE supervisory systems

Applications

Refrigerated vehicles, plug-in cabinets, refrigerated display cases, control panels.

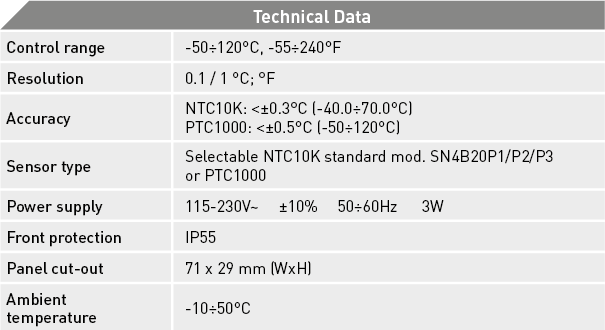

Technical data

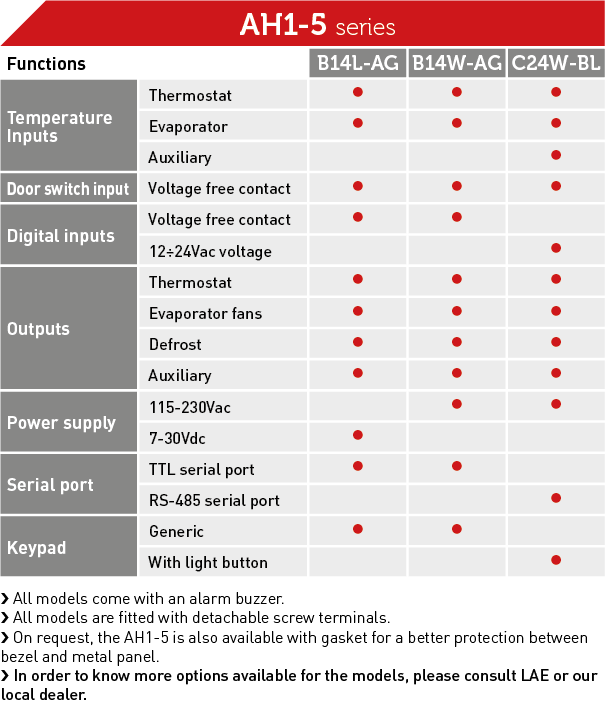

AH1-5B14L-AG
