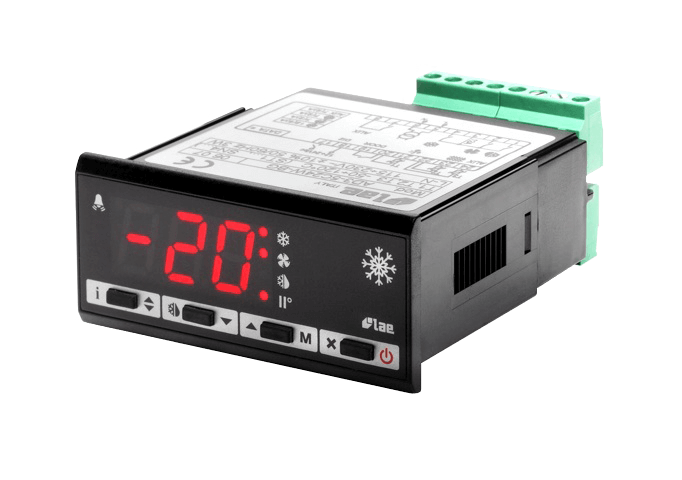

AD2-5

Universal Refrigeration Controller

Data sheet

Download

Main features

  • Defrosts at regular intervals
  • Optional synchronized defrost start and termination with master-slave connection
  • Selectable NTC10K or PTC input
  • Universal 115-230Vac power supply
  • FLEXICOLD function for energy saving or alternative setpoint
  • Optional control of a second compressor or evaporator
  • Excellent evaporator fan control
  • Temperature, door open, condenser high temperature/pressure alarms
  • Light and standby control (On/Off)
  • Connectivity to LAE supervisory systems

Applications

Plug-in cabinets, supermarket display cases, cold stores, control panels, upright fridges and freezers, refrigerated tables.

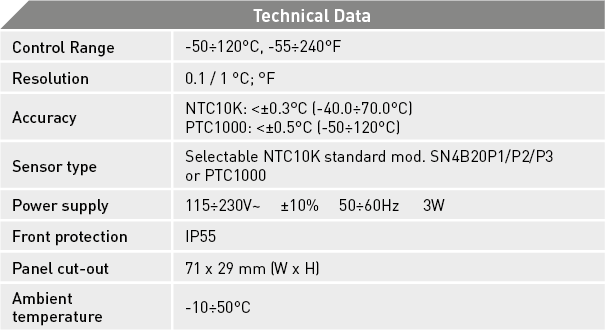

Technical data

AD2-5C34W-BG
