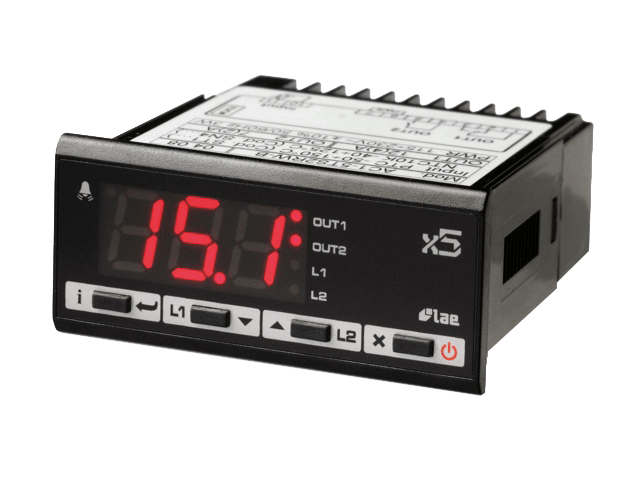

AC1-5

Two channel universal Controller, ON/OFF or PID

Data sheet

Download

Main features

  • Runs on universal mains power supply
  • PID with autotuning or ON/OFF control
  • Main output on 12A relay or for SSR-piloting and auxiliary output on 5A relay
  • Input for 0÷1V, 0/4÷20mA, PTC/NTC10K, TC J/K  or Pt100
  • 0.1 / 1°C or 1°F resolution
  • Selectable Refrigerating/Heating (Dehumidifying/Humidifying) control
  • Absolute or relative temperature alarms
  • ON/OFF button on front
  • Connectivity to LAE TAB supervisory systems

Applications

Temperature: Control of small cold stores, refrigerated cabinets and tables, heating systems, heated cupboards, bains-marie, ovens, laboratory equipment. Humidity: Control of greenhouses, seasoning cells, cold rooms, air-conditioned rooms.

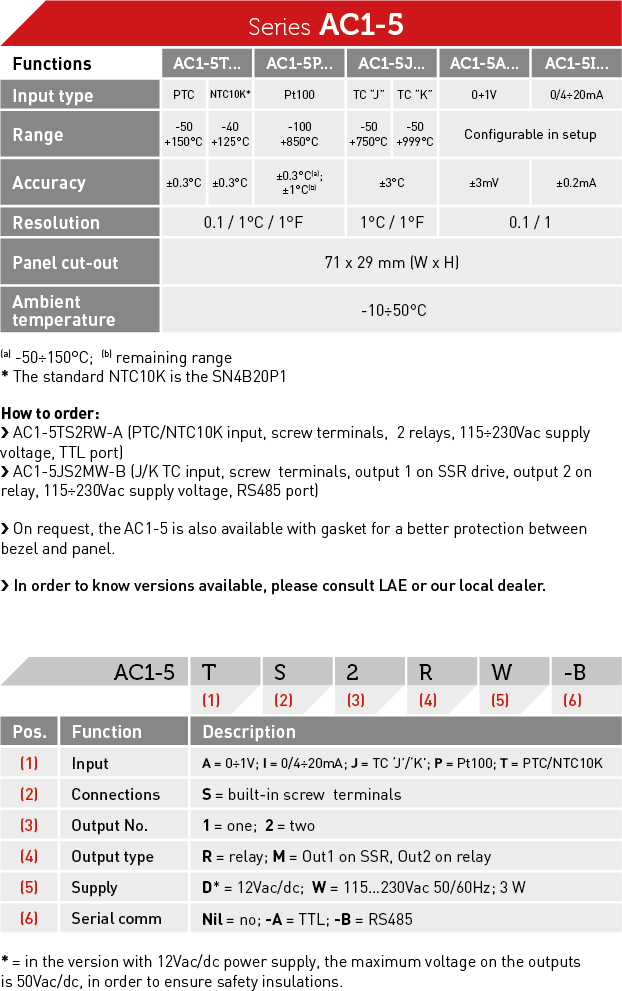

Technical data

AC1-5TS2RW-A
AC1-5PS2MW-B
