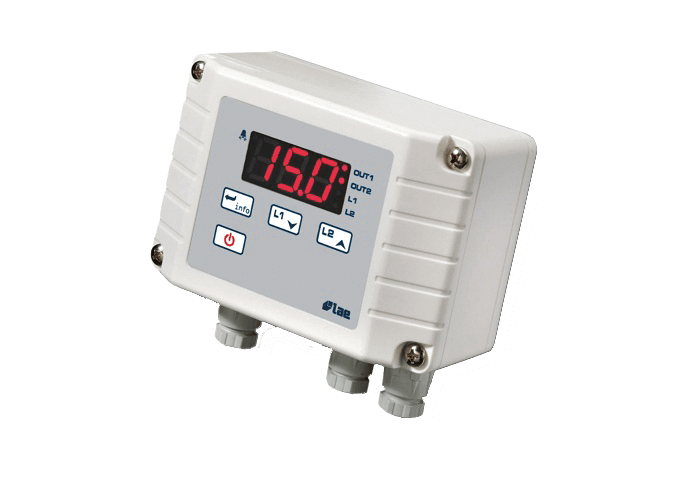

AC1-2W

Two channel universal Controller, ON/OFF or PID

Data sheet

Download

Main features

  • Wall-mount controller
  • Runs on mains power supply
  • PID with autotuning or ON/OFF control
  • Input for 0÷1V, PTC/NTC10K
  • 0.1 / 1°C or 1°F resolution
  • Selectable Refrigerating/Heating (Dehumidifying/Humidifying) control
  • Absolute or relative temperature alarms
  • ON/OFF button on front
  • Connectivity to LAE TAB supervisory systems

Applications

Temperature: control of small cold stores, heating systems, bains-marie, ovens, laboratory equipment. Humidity: control of greenhouses, seasoning cells, cold rooms, air-conditioned rooms.

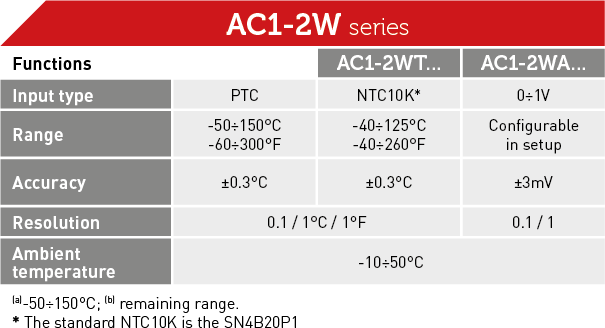

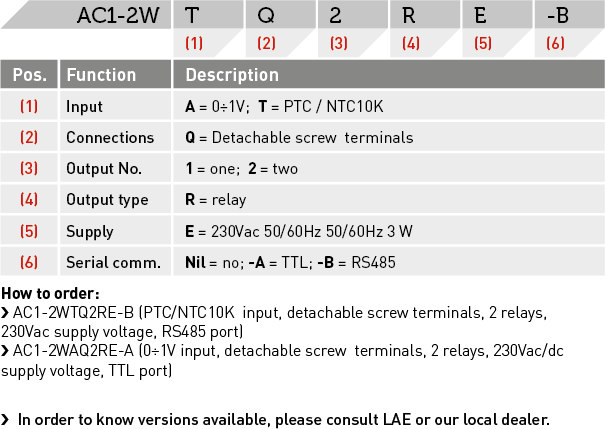

Technical data

AC1-2WAQ2RE-A
AC1-2WTQ2RE-B
