AC-Series Electronic Controllers

Two-channel universal controllers, ON/OFF or PID

Dual-output general-purpose controller for temperature and humidity control, PANEL OR DIN-RAIL.

The AC-Series covers general-purpose, dual-output control for cooling/heating and humidifying/dehumidifying applications, with PID autotuning or ON/OFF control and wide input compatibility (NTC, PTC, Pt100, thermocouple J/K, 0-1V, 0/4-20mA depending on model). Available as panel-mount with capacitive touch (AC2-5) or DIN-rail (AC2-27).

Key Features

  • Two independent output channels, ON/OFF or PID with autotuning
  • Cooling/heating and humidifying/dehumidifying, selectable
  • Main output: changeover relay or external SSR control
  • Auxiliary output on relay
  • Wide input compatibility: NTC, PTC, Pt100, thermocouple J/K, 0-1V, 0/4-20mA (model dependent)
  • Absolute or relative temperature alarms
  • Available with various mains power supply options
  • TTL or RS485 serial port with selectable ASCII/RTU protocol
  • Panel-mount with capacitive touch (AC2-5) or DIN-rail (AC2-27) format

Product range

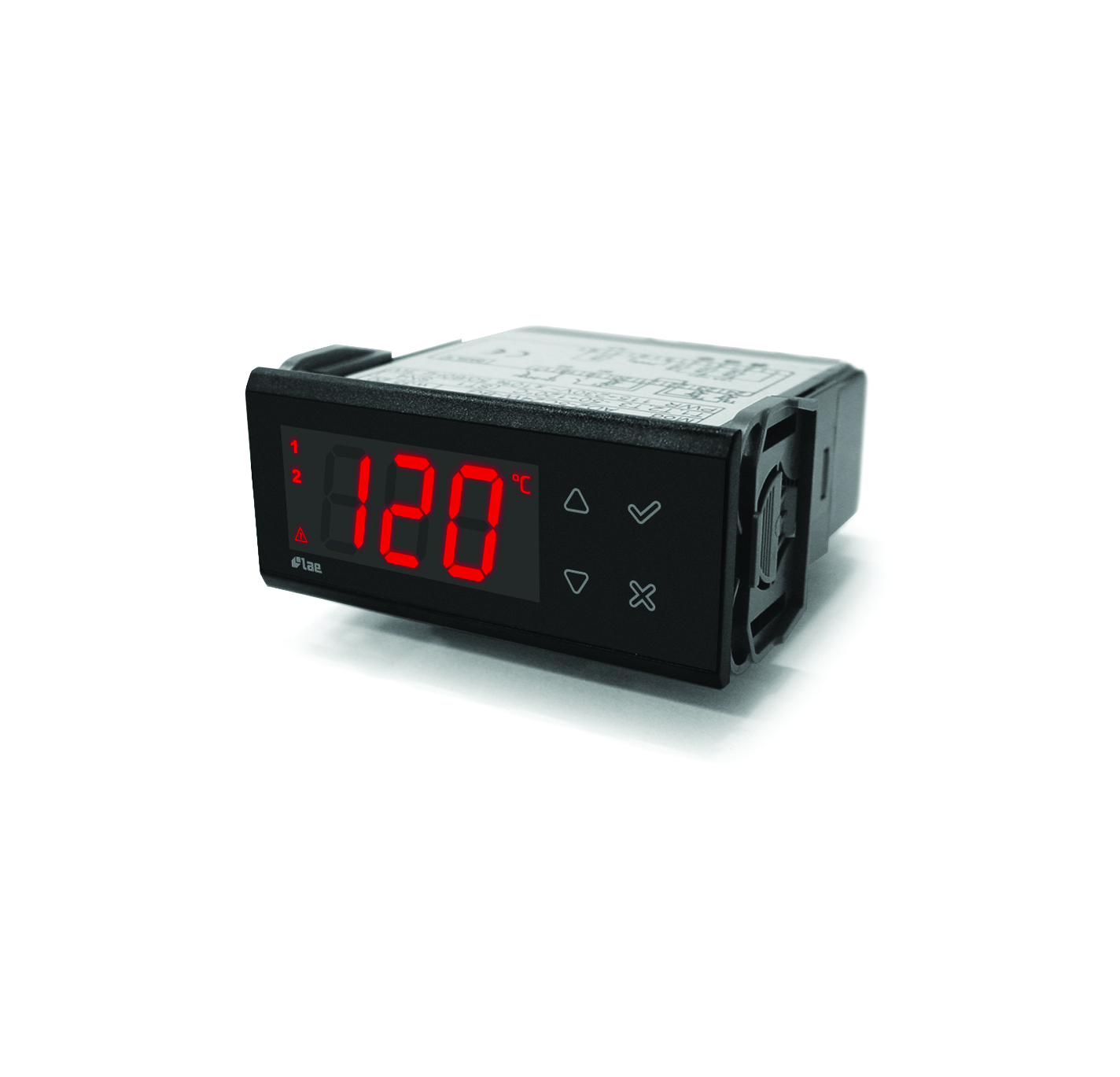

AC2-5 Technical Data
AC2-5T… AC2-5A… AC2-5I…
Inputs Type PTC NTC10K PT100 TC “J” TC “K” 0-1V
Configurable in setup		 0/4…20 mA
Configurable in setup
Range -50+150°C / -60+300°F -40+125°C / -40+260°F -100+850°C / -150+999°F -50+750°C / -60+999°F -50+999°C / -60+999°F Configurable in setup Configurable in setup
Accuracy ±0.3°C / ±0.6°F ±0.3°C / ±0.6°F <±0.3°C -50..150°C; ±1°C out of that range < ±3°C / < ±5°F < ±3mV < ±0.2mA
Resolution 0.1/1°C/1°F 1°C/°F 0.1/1 0.1/1
Outputs OUT1 (Relay) 3.6 FLA, 21.6 LRA @ 240Vac; 12A resistive DC30 10A
OUT1 (External SSR control) 15mA, 12Vdc
OUT2 (Relay) 1 FLA, 6 LRA @ 240Vac; 7A resistive DC30 5A
Power supply AC2-5…W 100 ÷ 240 Vac ±10%, 50/60Hz, 3W
AC2-5…L 7 ÷ 30Vdc / 12Vac ± 10%, 3W (power supply of the controller and of the loads must be of type SELV or PELV)
Technical specifications Front protection IP54 (with gasket)
Buzzer No
Real Time Clock battery No
Dimensions 77 x 35 x 77 mm
Panel-cutout 71 x 29 mm (WxH)
Environment conditions Operating temperature & humidity -10… +50°C; 15%… 80% rH
Conformity Marks CE
Use with flammable refrigerants No
AC2-27 Technical Data
AC2-27… AC2-27P… AC2-27J… AC2-27A…
Inputs Type PTC NTC10K PT100 TC “J” TC “K” 0-1V
Configurable in setup
Range -50+150°C / -60+300°F -40+125°C / -40+260°F -100+850°C / -150+999°F -50+750°C / -60+999°F -50+999°C / -60+999°F Configurable in setup
Accuracy ±0.3°C / ±0.6°F ±0.3°C / ±0.6°F <±0.3°C -50..150°C; ±1°C out of that range < ±3°C / < ±5°F < ±3mV
Resolution 0.1/1°C/1°F 1°C/°F 0.1/1
Outputs OUT1 (Relay) 3.6 FLA, 21.6 LRA @240Vac; 12A resistive
OUT1 (External SSR control) 15mA 12Vdc
OUT2 (Relay) 3.6 FLA, 21.6 LRA @240Vac; 12A resistive
Power supply AC2-5…W 100 ÷ 240 Vac ±10%, 50/60Hz, 3W
AC2-5…L 7 ÷ 30Vdc / 12Vac ± 10%, 3W (power supply of the controller and of the loads must be of type SELV or PELV)
Technical specifications Buzzer No
Real Time Clock battery No
Dimensions 72 x 94 x 61 mm – DIN rail
Environment conditions Operating temperature & humidity -10… +50°C; 15%… 80% rH
Conformity Marks CE
Use with flammable refrigerants No

Documentation

Access datasheets, manuals, software and technical resources of CD5.

427 KB
Technical Data AC2-5

Updated 18/07/2023

IT EN DE
.PDF
1,6 MB
Instructions for use AC2-5

Updated 02/10/2024

IT EN DE FR
.PDF
532 KB
Technical Data AC2-27

Updated 22/04/2024

EN
.PDF
2,6 MB
Instructions for use AC2-27

Updated 14/11/2025

IT EN DE FR
.PDF
